70W Excimer 222nm Disinfection Machine Germicidal Lamp Automatic

Products Description

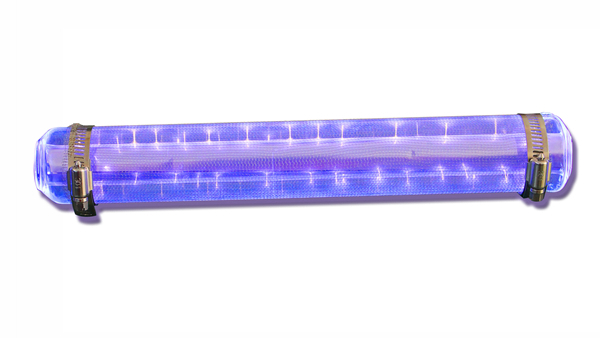

222nm FAR-UVC Excimer Lamps

An innovation of UVC 222nm Excimer Lamps is a mercury free lamp and disinfect 99% of viruses, bacteria,

mold and spores in facilities and on surfaces. F-Series Excimer lamps ideally for anyone can then adapt and integrate with your our devices.

Products Description

- specification -
Model:	NBUVX03 -70W
Size:	240mm*37mm*37mm
Tube Diameter	31mm
Input Voltage:	AC230V
Rated Power:	70W
Lamp Current:	181mA
Working Lifespan:	≥10000H
Wavelength:	222nm(far uvc)
Warranty:	1 Year
Working Temperature:	0-40℃
Matched Ballast:	XPES-222nm-30W

Details

3. There is no internal electrode inherent which is in the traditional light source, which avoids the contact between the

electrode and the plasma, the corrosion and sputtering of the electrode, and the service life is greatly extended;
4. It can be turned on and off instantly at any time, without preheating, the number of switches does not affect the service
life, and the number of switches is large;
5. Turning on and running are not affected by the ambient temperature, and the light output is relatively more stable;
6. Cold light source, no infrared output, no obvious heating effect on the processed object;
7. Compact size, can be larger according to the power of the adaptable power supply, and strong air cooling or water cooling is required for higher power;
8. The 222nm excimer ultraviolet lamp is preferably adapted to a pulsed power supply. Without any protective measures, the ozone output of the naked lamp is almost zero after the ignition point is stable;
9. Pay attention to ultraviolet rays hurting people, do not irradiate humans or animals!

222 nm wavelength excimer lamp application field
1. Inactivate viruses, bacteria, and microorganisms. Used for sterilization and disinfection in the fields of drinking water or sewage water treatment and air purification;
2. Photochemical reaction. Used to prepare electronic thin films and synthesize nanomaterials;
3. Surface modification of textiles. Used to increase the air permeability and moisture absorption of the fabric surface;
4. Photolyze hydrogen peroxide to produce strong oxidizing OH free radicals;
5. The cold UV printing light drying and curing in the printing process is especially suitable

COEXISTENCE WITH HUMAN BEINGS

NO HARMS TO HUMAN'S SKIN AND EYES !

Detailed Images

Product detail drawing

1. Green and environmental protection. There is no need to use mercury in manufacturing, no secondary pollution and waste recycling problems;

2. The monochromaticity is good, there is no stable ground state, and there is no self-absorption in the ground state. The power density of the lamp can be made large, the ultraviolet output energy is concentrated, and the local ultraviolet output intensity is high;

3. There is no internal electrode inherent which is in the traditional light source, which avoids the contact between the electrode and the plasma, the corrosion and sputtering of the electrode, and the service life is greatly extended;

Product Presentation

Product introduction: application, function, style, etc

The following configuration is a product diagram + table with the specific parameters of the configuration product

Product Name	222nm UVC Lamp
Material	Quartz tube / Metal net
Power	50w
Voltage	110v/220v
Type of Lamp-house	Customized
Model	E222UV50W44-200
Style	Straight
Service Life	18000 hours
Disinfection rate	99.99%

• Size introduction and size picture

Company Introduction

FAQ

Q: Are you a trading company or manufacturer?
A: We are a professional manufacturer of eco-friendly products

Q: What's your company MOQ?
Our company has MOQ requirements, but we also accept small quantities.

Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples? is it free or extra?
A:1. If we have inventory and the total amount is small, it's free.
2. If the total amount is larger, sample and freight costs have to be paid by your esteemed company. But we will return the sample cost to you when we receive your initial order.

Q: When I want customized products, how to do it?
A: We have professional equipment, technicians & skilled employees, OEM & customized service is welcome. Drawings or samples are required.

Q: What are your terms of payment?
A: Generally, we do T/T in 30% deposit before production,70% balance before shipping. Also, payment terms are negotiable depending on the customer's request.
