H Shape 40W UVC Germicidal Tubes Light 533mm Length G23

Ningbo Uv Light & Electricity Co., Ltd.
Contact Now
    Buy cheap H Shape 40W UVC Germicidal Tubes Light 533mm Length G23 from wholesalers

    Buy cheap H Shape 40W UVC Germicidal Tubes Light 533mm Length G23 from wholesalers
    • Buy cheap H Shape 40W UVC Germicidal Tubes Light 533mm Length G23 from wholesalers
    • Buy cheap H Shape 40W UVC Germicidal Tubes Light 533mm Length G23 from wholesalers
    • Buy cheap H Shape 40W UVC Germicidal Tubes Light 533mm Length G23 from wholesalers

    H Shape 40W UVC Germicidal Tubes Light 533mm Length G23

    Ask Lasest Price
    Brand Name : UV, Yoway
    Model Number : ZW40D17Y-H533
    Certification : CE,ROSH
    Price : $6-$45/SET
    Payment Terms : T/T
    Supply Ability : 5000pcs per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    H Shape 40W UVC Germicidal Tubes Light 533mm Length G23

    H Shape 40W UV Light Tubes 533mm Length G23 UVC Germicidal Light uv tube


    40W 533mm 2G11 Light UVC Tube H Shape UV Germicidal Lamp

    H type UV germicidal lamp is equipped with hot cathode starter,with the sepcification from 5W to 55W ,and a diameter of 12mm and 17mm

    H Shape 40W UVC Germicidal Tubes Light 533mm Length G23H Shape 40W UVC Germicidal Tubes Light 533mm Length G23H Shape 40W UVC Germicidal Tubes Light 533mm Length G23H Shape 40W UVC Germicidal Tubes Light 533mm Length G23H Shape 40W UVC Germicidal Tubes Light 533mm Length G23


    It could be applied in the electric appliance such as dynamic air sterilizer,sterilization cabinet as well as the equipments such as the sterilizer,disinfectant devices,deodorizing apparatus and purifier. Operation rooms, sickness rooms. Medical disinfection and air clean machines. UVC germicidal lamp are widely used in: ---hospital,medical centers,old homes,orphanages ---kindergartens,schools,high schools,universities ---restanrants and hotels ---food industry(meat,milk etc.)


    H Shape 40W UV Light Tubes 533mm Length G23 UVC Germicidal Light uv tube 0H Shape 40W UV Light Tubes 533mm Length G23 UVC Germicidal Light uv tube 1

    PRODUCT DETAILS
    1.Made of high quality quartz.
    2.Average lamp life is 8,000 hours.

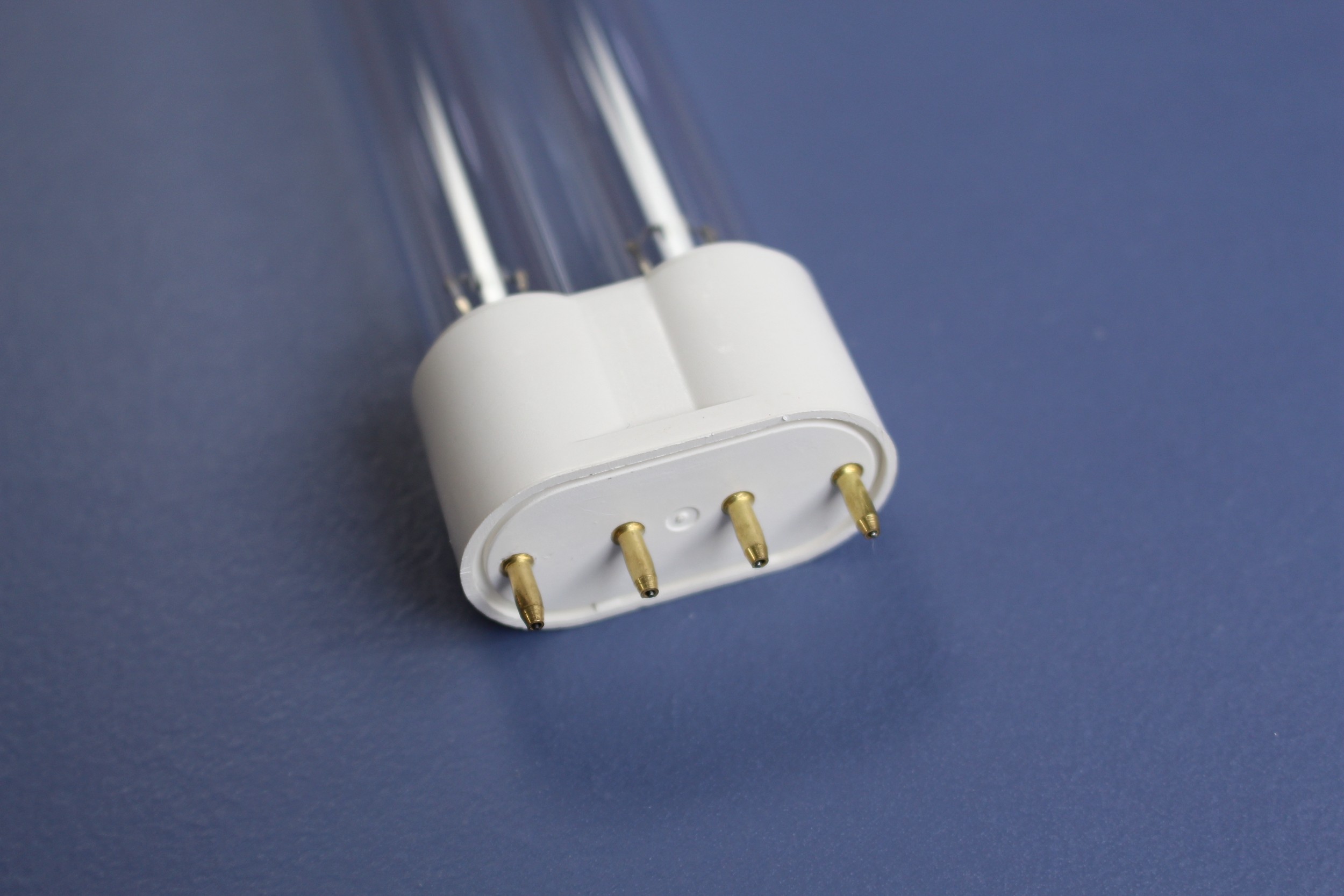

    3.lamp cap are G23 and 2G11 are for choice.
    4.Ozone-free lamps(254nm) and ozone-generating lamps (185nm) are for choice.
    5.The 254nm (UV output) was tested in the laboratory.It maybe different when the environment was changed.

    1KITCHEN FUME PURIFICATION
    2DEODORIZATION AND PURIFICATION TREATMENT
    3REMOVE ODOR AND PURIFIY INDUSTRIAL WASTE GAS

    Noted: for example: ZW15S(D)25W(Y)-Z436 ,"ZW" means Ultraviolet lamp,"15" means 15w,"S" means double ended pipe line,"D" means single ended pipe line,"25" menas pipe diameter is 25mm,"W" means with the ozone,"Y" means without ozone," Z" means Straight pipe,"436" means pipe length is 436mm)
    ITEM NO./规格型号PRODUCT PICTURE/产品图片Dia/管径(mm)MOQ(MOQ是否需要更改)PORTPrice/价格($/pcs)Ballast Price/ 镇流器价格($/set)
    单 端 H 管/Single ended H Pipe5WZW5D12Y(W)-H85∅12100NINGBO
    7WZW7D12Y(W)-H115∅12100NINGBO
    9WZW9D12Y(W)-H145∅12100NINGBO
    11WZW11D12Y(W)-H215∅12100NINGBO
    13WZW13D12Y(W)-H164∅12100NINGBO
    18WZW18D17Y(W)-H217∅17100NINGBO
    24WZW24D17Y(W)-H317∅17100NINGBO
    36WZW36D17Y(W)-H411(386)60w∅17100NINGBO
    55WZW55D17Y(W)-H53395w∅17100NINGBO

    Product Display
    ModelZW40D17Y-H533
    Tube17mm
    Length533mm
    Power40W
    Current0.390A
    Voitage at92V

    UV output at

    254nm

    150μw/ cm2
    1.1W

    Light Source
    Quartz Tube
    wavelength(nm)
    253.7
    Rated Power
    40W
    Diameter
    17mm
    Base face length
    533
    Head material
    ceramics
    Single head or double head
    Sigle-ended

    The Eight Core Technologies

    1.Core filament electronic power processing technology.
    2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology.
    4.Solid mercury----Homemade special mercury fixation to improve light efficiency.
    5.Unique patented rapid leak detection technology
    6.Unique wick anti-vibration patented technology .
    7.The most advanced automated processing equiment in China.
    8.Cost advantage and perfect pre-sales and after-sales service.

    Product Advantage:

    Long life

    The average life is 8,000-10,000 hours

    High ultraviolet output

    We adopt the high purity quartz tubes and advanced manufacturing technique to make the Youwei’s lamps with very high ultraviolet output.

    Small light decay

    The UV light decay is only 10-15% during the life time.

    Reliability and stability

    Advanced manufacturing technology and supervising quality guaranteed that our lamps are provided with dependability, stability, consistency.

    Good cost performance

    l All data are from factory internal test, only for reference use
