320W Dimming Electronic Ballast For Double Amalgam Germicidal Lamp Reactor

320 dimming type 320W 500w gphha1554t6l uvc electronic ballast double amalgam germicidal lamp reactor

Installation case:

l Technical specifications

Mains Voltage:220-277VAC±10%

Mains Frequency:50/60Hz

Power Factor: >0.98

Efficiency: >91%

Operating Frequency: 28-80KHz

Starting:Preheat

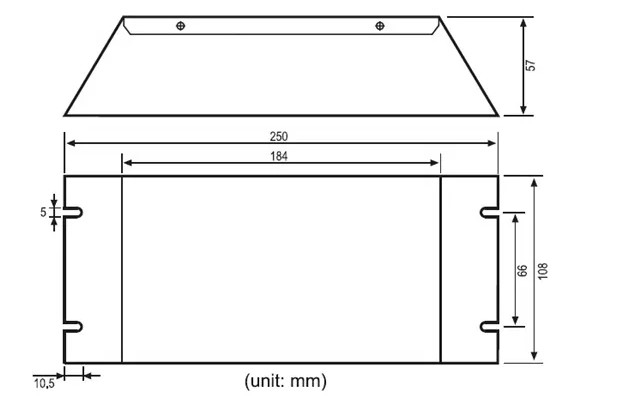

Dimensions:250*141*50mm

l Lamp status indication via LED indication

Green LED:Lamp on

Red LED:Lamp fault

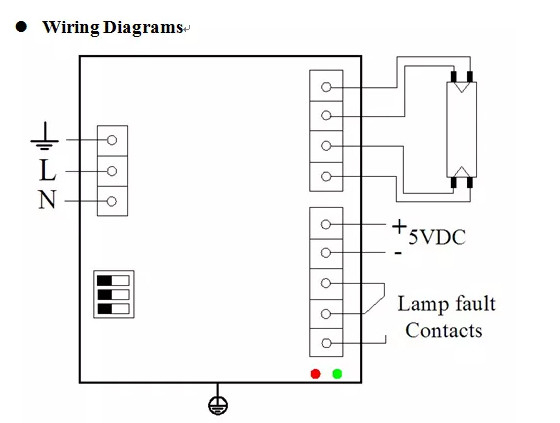

l Lamp status forwarding

Potential free relay contacts for lamp on/lamp fault.

l Installation requirement

Wire Gauge:0.5-1.5mm2

Max.cable length between ballasts and lamp:5m

Relay contacts:potential free,load:50…500mA at 24…230V AC;

50…500mA at 5…60V DC

l Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

Don’t short any two wires of the four outputs.

l Features

RS485 dimmable unction:The lamp power can be adjusted from 60% to 100%.

Advantages:

Short circuit limiting power consumption: output short circuit, no danger, fault removed, relevant parameters meet the requirements of the letter of acceptance

1.9 open circuit limiting power consumption: the output is open circuit, without any danger, the fault is removed, and the relevant parameters meet the requirements of the acknowledgement

Ningbo UV Light & Electricity Co.,Ltd is a professional manufacturer of ultraviolet germicidal lamp and related products, integrating R&D, production, sales together. UV germicidal lamp is our main product, incuding sing-ended, double ended, U shape, H shape, amalgam UV lamps, etc.

Q: What's your advantage compared with other suppliers?

A: Our UV lamps are made with high-quality quartz.CE and Rohs certificates and competitive prices.

Q:What's my consideration when I choose one model of uv lamps?

A: Watts,Length,Volt and current about the electric ballast.

Q:What are the types of use of different UVC lamps?

A:Different uvc lamps can be used for water treatment,aquarium,medicial care, air purification and so on.

Q:What is the difference between normal and amalgam lamps?

A:Compared with the normal lamps, Amalgam lamp increase the ultravaiolet output efficiency by 2-3 times at the same length.and it also can stand above 70°C .

Q:How does the generated OZONE affect the health of people?

A:Excessive ozone can cause human organ failure.

Q:Can you accept the OEM or ODM?

A: Yes.

Ningbo UV Light & Electricity Co., Ltd, located in a beautiful island called Daxie, is a manufacturer of personal care products and high-end UV germicidal lamp in Ningbo, Zhejiang, China. As a Joint-stock enterprise, we are capable in R&D, manufacturing and sales. Xieguang Electronic Factory, the company’s predecessor, was established as early as in 1986. And the successor, Ningbo UV Light & Electricity Co., Ltd now has 30 years’ manufacturing experiences of making UVC lamps and personal care products.

The factory covers an area of more than 30 mu and has over 160 employees. Our company

has its own certificates including ISO9001, CE, RoHS as well as the certificates of sterilization effect, Hygiene license, explosion proof, etc. The subsidiaries including Ningbo Yijiakang electrical appliances Co., Ltd which focuses on personal care products and health appliances with UV, and Ningbo Zhongrun water treatment equipment Co., Ltd which products applied with UV are for water treatment application, and Ningbo Youshiwei electronic Co., Ltd which makes research and development on supporting electronic products. The UV germicidal lamp series of our company is wildly used in the water treatment system, air purification system and health appliance, etc. Ningbo UV Light & Electricity Co., Ltd is the representative company of personal care products and high-quality product in UV germicidal lamp domestic industry.

Now, company has three production bases of UV germicidal lamp in Ningbo, Zhejiang, Fuoshan, Guangdong and Lianyungang, Jiangsu. And in Foshan, Guangdong, there is a supporting production base of electronic ballast, the annual output of UV germicidal lamps and supporting ballasts can reach more than 5 million. The key materials of the UV germicidal lamps are imported, and the clip-sealing machine for the lamp making and high-vacuum-exhaust equipment are tailor-made. What's more, it has established an industry-university-research laboratory with domestic electric-light-source institutions of higher education to improve quality through continuous process innovation and improvement. The company carries out strict quality control of every product and strives to deliver perfect products to customers.

As to the quality management, the company has established quality management system and passed a series of certifications such as ISO9001, ISO14000, CE, and UL. It is the great effort that makes the company's development more formal and international step by step. With strong production and R&D ability, the factory is now an enterprise of diversified development with strict and completed factory management, own brand as well as the ability to design and develop new products and provide OEM services for the customers. And our pursuit for the customer always are on-time delivery, qualified and cost-effective products.

Our main products include personal care products and UV lamps,like hair remover,massage pad, tooth cleaner, face beauty instruments,uvc light,double-ended straight tubes, one-ended straight tubes, one-ended H tubes, high-power water treatment lamps, code cathode lamps, electronic ballasts, sewage treatment equipment and other diversified products that can meet the needs of different customers.
