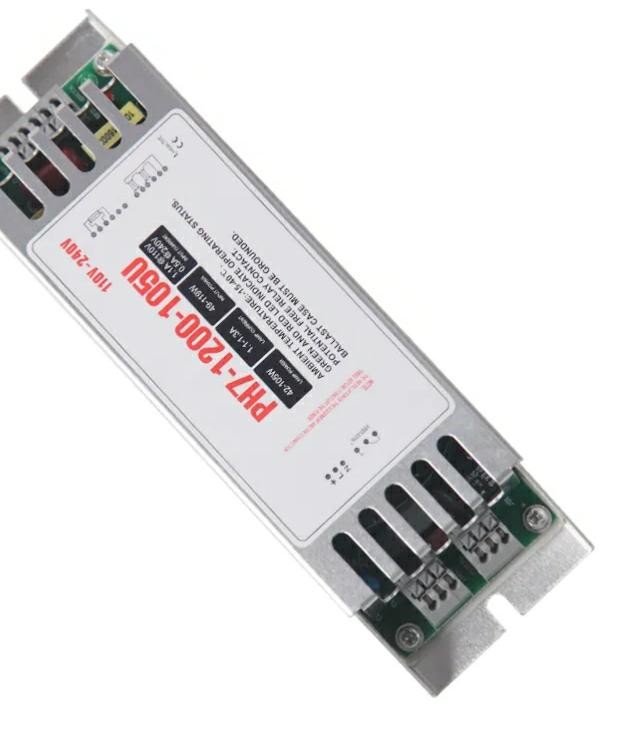

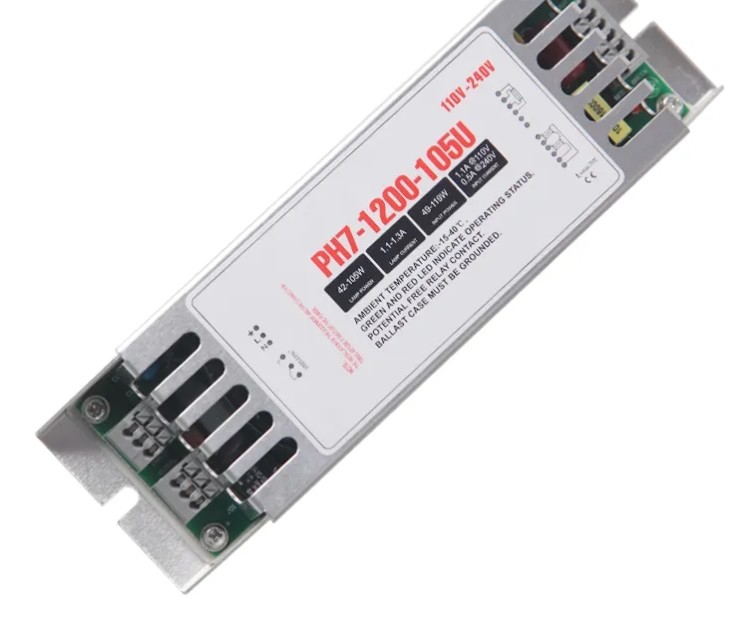

    PH7-1200-105U UV Ballasts For Amalgam UV Lamp GPHA357T5 GPHA843T5

    Ask Lasest Price
    Brand Name : UV, Yoway
    Model Number : PH7-1200-105U
    Certification : CE,ROSH
    Price : $6-$65/SET
    Payment Terms : T/T
    Supply Ability : 5000pcs per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    PH7-1200-105U UV Ballasts For Amalgam UV Lamp GPHA357T5 GPHA843T5

    UV Ballasts PH7-1200-105U For Amalgam UV Lamp GPHA357T5 GPHA843T5
    Electronic Ballast (EB)
    The electronic ballast is an inverter which can convert AC power supply into a high frequency AC power supply.
    Two types of input voltage. One is low DC input power from DC12V to DC110V; another is AC input power from 24VAC to 277VAC.
    Frequency 50/60Hz.
    Two types of installation mode. One is all Built-in type and another is independent and built-in.
    Three starting modes, Pre-heat, Instant and Rapid start
    Suggest that the lead between electronic ballast and lamp tube is less than 5m.
    Electronic ballast is a power component. Metal enclosure can be operated when the highest temperature is below 70 degree and
    plastics enclosure can be below 60 degree. The lower temperature of ballast’s enclosure, the longer life of ballast.
    Ballast case must be grounded and don’t short any two wires of the outputs.
    Professional good match with UVC lamps for air purification, industrial water treatment, drinking water, etc..
    Warning: The radiation of those lamps is harmful to eyes and skin, Protect your eyes and your skin against the Ultraviolet rays

    PH7-1200-105U UV Ballasts For Amalgam UV Lamp GPHA357T5 GPHA843T5PH7-1200-105U UV Ballasts For Amalgam UV Lamp GPHA357T5 GPHA843T5

    UV ballast PH7-1200-105U for amalgam UV lamp GPHA357T5 GPHA843T5

    1200mA lamp current UV ballast PH7-1200-105U

    GPH436T5HO TUVPL-L35WHO UV lamp electronic Ballast

    Preheat UV ballasts PH7-800-95U lamp status indication via LED

    UV ballast 800mA lamp current PH7-800-95U

    Ballast for one UV lamp and for 2 UV lamp option PH7-425-75U

    UV ballasts for GPH1148T5 GPH1554T5 GPH1630T5 germicidal UV lamp PH7-425-75U

    PH7 Universal Voltage Type 40W to 105W 99V-264V UV Ballast

    High power UV ballast with high lamp current 0.39A to 1.9A

    Factory prices UV electronic ballast with all kinds of model and wattage.

    All kinds of AC/DC Voltage

    Suitable for most of UV lamps as below mentioned lists.

    1.Suitable for UV lamps

    PH7-425-75U UV Ballast

    1xLamp types: GPH1148T5 GPH1554T5 GPH1630T5 TUV64T5 G64T5

    2xLamp types: GPH793T5 GPH843T5 TUV36T5 G36T5

    PH7-800-95U UV Ballast

    1xLamp types: GPH846T5HO GPH893T5HO GHO36T5 TUV36T5HO TUV 55W HO TUV 75W HO

    2xLamp types: GPH436T5HO TUVPL-L35WHO

    PH7-1200-105U UV Ballast

    1xLamp type: GPHA843T5L

    2xLamp type: GPHA357T5L

    PH7-1500-80U UV Ballast

    Lamp type: NNL80/36U NIQ75/34 UVL80WT5

    PH7-1800-57U UV Ballast

    Lamp Type: GPHA357T6L

    2.Technical specifications

    Mains Voltage:110-240VAC±10%

    Mains Frequency:50/60Hz

    Power Factor: >0.98

    Efficiency: >90%

    Operating Frequency: 40-60KHz

    Dimensions: 185*56*38mm

    3.Lamp status forwarding

    Potential free relay contacts for lamp on/lamp fault..

    4.Installation requirement

    Wire Gauge:0.5-1.0mm2

    5.Mounting restrictions

    Disconnect Input Power Before Installing or Servicing.

    Ballast Case Must Be Grounded.

    Don’t short any two wires of the four outputs.

    6.Features

    Starting:Preheat

    7.Applications

    All areas of applications includes UV lamps

    Air purification

    Industrial water treatment

    Municipal water treatment

    Product Name
    Electronic ballast
    Material
    Iron
    Power100-20
    40-105w
    Voltage
    230V
    Type of Lamp-house
    all
    Model
    Style
    Electric
    We design and manufacture UVC ballasts for a wide range of germicidal ultraviolet lamps used in a variety of water, air, and surface purification devices. Our ballasts are essential to increasing the safety and working lifetime of UVC lamps. No matter the size, power, or lamp configuration required for your application, Our team of engineers will design and manufacture a ballast with the desired certifications to fit perfectly into your system. Our collaborative approach helps us serve as an extension of your engineering and design team.


    Product name
    Electronic ballast for uv lamps
    Wattage75
    21-100w
    Voltage
    230 v
    Lamp quantity
    1 pcs
    Color
    White
    Application
    Germicidal ultraviolet Lamps
    Size
    8*3.5*2.7cm
    Brand
    UV or OEM
    Warranty
    1 years

    UV ballast guaranteed to work with your UV germicidal system

    Features:
    * Guaranteed to work with your UV Germicidal Bulb.
    * Comes complete with wiring diagram necessary to run your bulb(s)
    * Industry leading 1 YEAR WARRANTY
