DC 24V PW11-425-40D24 UV Electronic Ballast For UVC Lamp

Ningbo Uv Light & Electricity Co., Ltd.
Contact Now
    Buy cheap DC 24V PW11-425-40D24 UV Electronic Ballast For UVC Lamp from wholesalers

    Buy cheap DC 24V PW11-425-40D24 UV Electronic Ballast For UVC Lamp from wholesalers
    • Buy cheap DC 24V PW11-425-40D24 UV Electronic Ballast For UVC Lamp from wholesalers
    • Buy cheap DC 24V PW11-425-40D24 UV Electronic Ballast For UVC Lamp from wholesalers
    • Buy cheap DC 24V PW11-425-40D24 UV Electronic Ballast For UVC Lamp from wholesalers

    DC 24V PW11-425-40D24 UV Electronic Ballast For UVC Lamp

    Ask Lasest Price
    Brand Name : UV, Yoway
    Model Number : PW11-425-40D24
    Certification : CE,ROSH
    Price : $6-$45/SET
    Payment Terms : T/T
    Supply Ability : 5000pcs per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

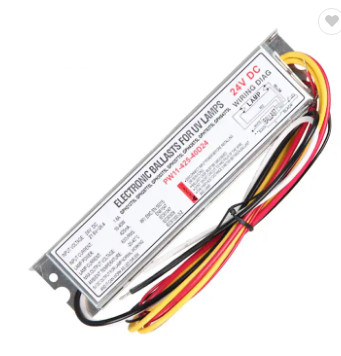

    DC 24V PW11-425-40D24 UV Electronic Ballast For UVC Lamp

    Rapid Start Electronic Ballast for One-lamp Operation

    24V DC 5W ELECTRONIC BALLAST t5 fluorescent tube electronic ballast,electronic ballast t5 DC24V ,t5 fluorescent tube electronic ballast,electronic ballast t5 1x28 ,t5 fluorescent tube electronic ballast ,t5 8w ballast ,DC24V T5 electronic ballast 2x6w

    DC 24V PW11-425-40D24 UV Electronic Ballast For UVC Lamp

    DC 24V PW11-425-40D24 UV Electronic Ballast For UVC Lamp

    l Technical specifications

    Efficiency: >87%

    Operating Frequency: 40-60KHz

    Starting:Rapid

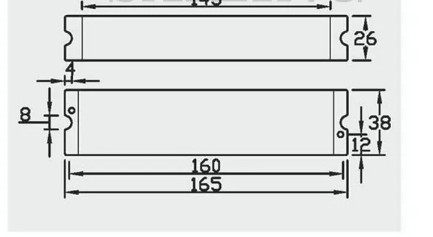

    Dimensions:165*38*26mm

    l Installation requirement

    Wire Gauge:0.5-1.5mm2

    Max.cable length between ballasts and lamp:1.5m

    LED specification:VF=1.8-3.6V LF=20-50mA

    l Mounting restrictions

    Disconnect Input Power Before Installing or Servicing.

    Don’t short any two wires of the four outputs.

    l For applications with less than one switch-on cycle per day

    (other otherwise preheat start ballasts are recommended)

    Lamp filament must be suitable for instant start operation,ask lamp manufacturer.

    l Features

    Lamp status indication via DC signal output.

    DC3~6V 5mA:lamp on. DC 0~2V:lamp fault or on lamp. Connect LED

    l Applications

    All areas of applications include Tanning UV lamps:

    =>Air purification

    =>Aquarium

    =>Domestic drinking water

    DC 24V PW11-425-40D24 UV Electronic Ballast For UVC LampDC 24V PW11-425-40D24 UV Electronic Ballast For UVC LampDC 24V PW11-425-40D24 UV Electronic Ballast For UVC LampDC 24V PW11-425-40D24 UV Electronic Ballast For UVC Lamp

    Model
    Input
    Voltage (V)
    Input
    Power (W)
    Input
    Current (A)
    Lamp
    Current (A)
    Start mode
    PW11-425-40D12
    10.8-13.2
    48
    4.0 @ 12V
    0.35-0.42
    Rapid
    PW11-425-40D24
    21.6-26.4
    48
    2.0@24V
    0.35-0.42
    Rapid
    PH15-425-18D12
    10.8-13.2
    24
    2.0@12V
    0.35-0.42
    Pre-heat
    PH15-425-18D24
    21.6-26.4
    24
    1.0@24V
    0.35-0.42
    Pre-heat
    PH15-180-10D12
    10.8-13.2
    12
    1.0@12V
    0.15-0.18
    Pre-heat
    PH15-180-10D24
    21.6-26.4
    12
    0.5@24V
    0.15-0.18
    Pre-heat
    PL15-425-18D12
    10.8-13.2
    24
    2.0@12V
    0.35-0.42
    Instant
    PL15-425-18D24
    21.6-26.4
    24
    1.0@24V
    0.35-0.42
    Instant
    PL15-180-10D12
    10.8-13.2
    12
    1.0@12V
    0.15-0.18
    Instant
    PL15-180-10D24
    21.6-26.4
    12
    0.5@24V
    0.15-0.18
    Instant
    PH7-425-40D24
    10.8-26.4V
    48W
    2.0@24V
    0.34-0.4
    Pre-heat
    PH7-800-40D24
    10.8-26.4V
    48W
    2.0@24V
    0.75-0.85
    Pre-heat
    We can make customized products !!!
    Specifications:
    1.high frequency working status,fast start without flickering;
    2.Low temperature rising, no noise, long life span,and fire resistant;
    3.Could shut off automatically when the tube is time over,or woring in abnormal status,and it will restart change the tube;
    4.Power:18W-40W;
    5.Material:copper wire or aluminum wire;
    6.Small size,light weight;
    7.Low power consumption

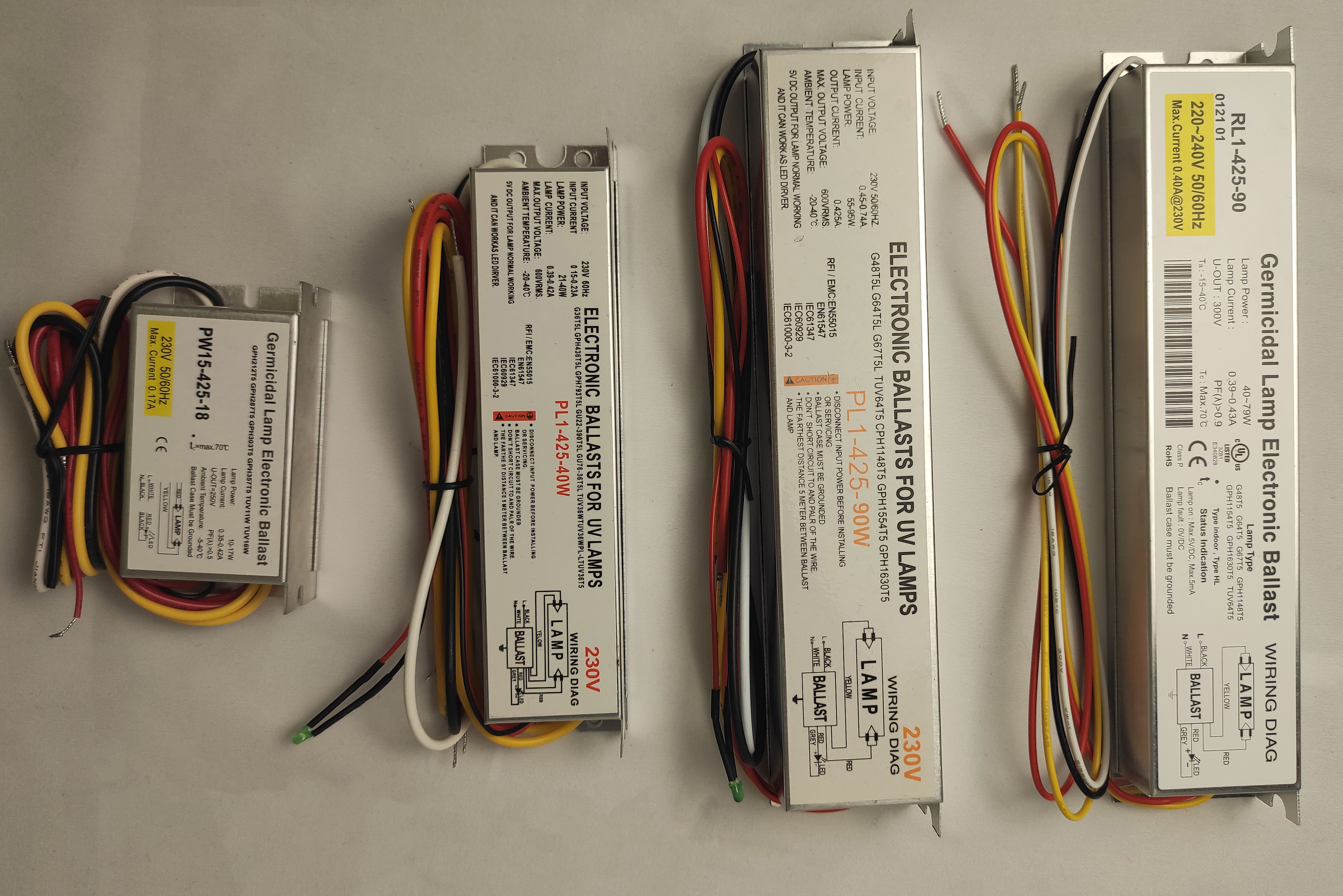

    Product Display
    DC 24V PW11-425-40D24 UV Electronic Ballast For UVC Lamp Output parameters PW11-425-40D24
    Input voltage range Max 48W
    Output current 0.35A~0.42A
    Voltage 1.6~26.4V
    Start time ≤ 8mS
    24V
    Use environment ta) - 20℃…+ 70℃

    Installation case:

    1.If the power of the ballast is less than the power of the lamp tube, the lamp emits less light, or even does not light up. 2.If the ballast power is greater than the lamp power, the lamp life will be reduced; the greater the power gap, the more life will be reduced. 3.In addition, the voltage of the ballast must match the power supply voltage.
    DC 24V PW11-425-40D24 UV Electronic Ballast For UVC Lamp

    Advantages:

    Short circuit limiting power consumption: output short circuit, no danger, fault removed, relevant parameters meet the requirements of the letter of acceptance

    1.9 open circuit limiting power consumption: the output is open circuit, without any danger, the fault is removed, and the relevant parameters meet the requirements of the acknowledgement

    1 KITCHEN FUME PURIFICATION
    2 DEODORIZATION AND PURIFICATION TREATMENT
    3 REMOVE ODOR AND PURIFIY INDUSTRIAL WASTE GAS

    Light Source
    Quartz Tube
    wavelength(nm)
    253.7
    Rated Power
    200W
    Diameter
    15mm
    Base face length
    1100
    Head material
    ceramics
    Single head or double head
    H shap

    The Eight Core Technologies

    1.Core filament electronic power processing technology.
    2.Use the best quality raw materials----Glass tube UV transmittance>93%. 3.Unique inner coating film and outer coating film technology.
    4.Solid mercury----Homemade special mercury fixation to improve light efficiency.
    5.Unique patented rapid leak detection technology
    6.Unique wick anti-vibration patented technology .
    7.The most advanced automated processing equiment in China.
    8.Cost advantage and perfect pre-sales and after-sales service.

    Ningbo UV Light & Electricity Co.,Ltd is a professional manufacturer of ultraviolet germicidal lamp and related products, integrating R&D, production, sales together. UV germicidal lamp is our main product, incuding sing-ended, double ended, U shape, H shape, amalgam UV lamps, etc.

    FAQ

    Q: What's your advantage compared with other suppliers?

    A: Our UV lamps are made with high-quality quartz.CE and Rohs certificates and competitive prices.

    Q:What's my consideration when I choose one model of uv lamps?

    A: Watts,Length,Volt and current about the electric ballast.

    Q:What are the types of use of different UVC lamps?

    A:Different uvc lamps can be used for water treatment,aquarium,medicial care, air purification and so on.

    Q:What is the difference between normal and amalgam lamps?

    A:Compared with the normal lamps, Amalgam lamp increase the ultravaiolet output efficiency by 2-3 times at the same length.and it also can stand above 70°C .

    Q:How does the generated OZONE affect the health of people?

    A:Excessive ozone can cause human organ failure.

    Q:Can you accept the OEM or ODM?

    A: Yes.
